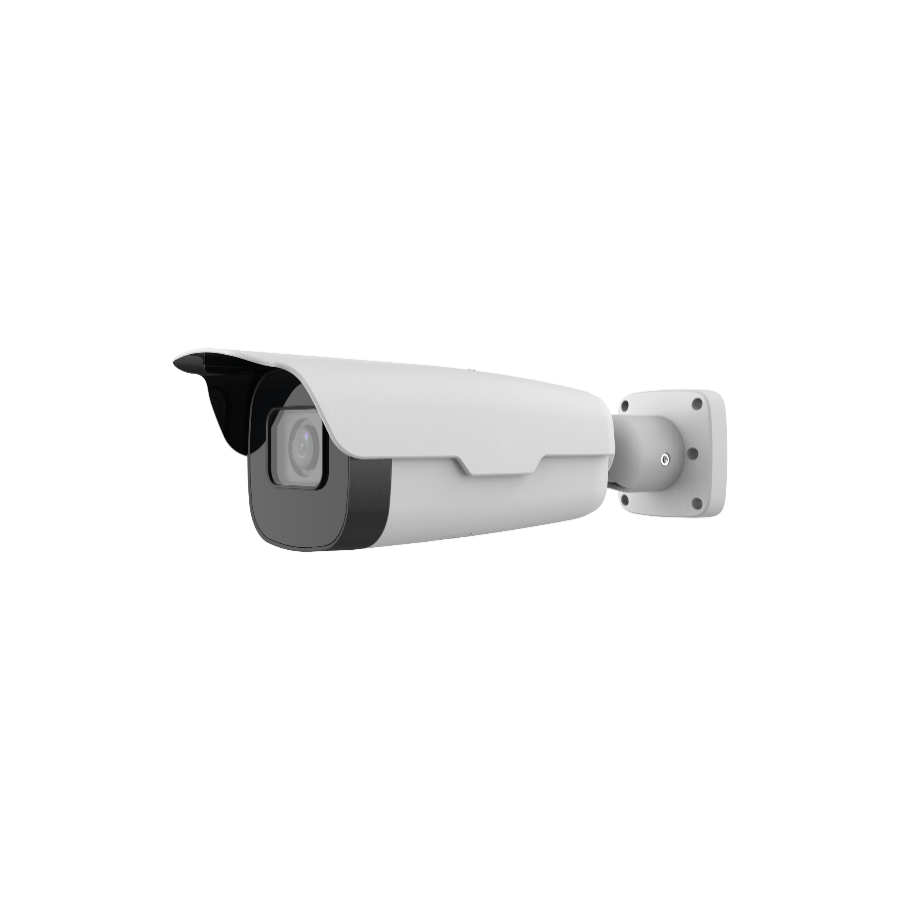

2MP 4X Zoom ANPR Bullet Camera with IR LEDs

2MP 4X Zoom ANPR Bullet Camera with IR LEDs

Pole Mount AdapterIndoor Fixed Dome In-ceiling Mount

IV-BV28122MP-LPR-IR

SKU: IV-BV28122MP-LPR-IR Categories: Bullet Camera, IP Cameras

Sensor: 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens: 2.8-12mm, motorized zoom
Max resolution: 1920 x 1080@60fps
Digital noise reduction: 2D/3D DNR
Video Compression: H.265, H.264, JPEG
Illuminator: Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control.
Edge storage: Built-in 8GB eMMC, supports Automatic Network Replenishment (ANR)
Smart IR: Support
Power: AC24 ± 20% / DC12V + 25% – 10%
Power consumption: ≤20W
Ingress Protection: IP67
IK10

Description

Optics

Color-Low-Light optical sensor capable of capturing and recognizing vehicles in low light environment when collaborating with integrated built-in illumination
2MP industrial quality sensor, 1920*1080 video image resolution
Motorized zoom lens, flexible adjustment of focus range according to the scene, easy installation
Automatic gain control, white balance, and WDR, ideal for various lighting conditions

Compression

Supports 1080P@60fps image collection
Supports one image stream, triple video streams
Supports 1080P@60fps live video streams
H.265
Custom OSD of various vehicle information

Functions & features

Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.
Recognizes vehicle body colors and characteristics (daytime)
Supports blacklist and whitelist configuration
Collaborates with lanes to control the entry & exit of vehicles and trigger gate opening
Supports the switch between road mode and entry/exit mode
8GB eMMC, expansion up to 256GB
Supports edge storage to prevent data loss in case of disconnected network
Tamper-proof info and records
Supports identification of fake license plates
Provides multiple 3rd-party integration methods including SDK and Socket.

Network

Network adaption ensures effective surveillance even in abnormal environments such as packet loss
Supports SNMP and SIP
UNP technology for NAT traversal

Network Security

Supports user authorization and password, detection of a weak password, and account lock-up when failed login attempts reach the limit
Supports secure Web access through HTTPS
Supports RTSP authentication prevents unauthorized video request
Supports IP address filtering
Supports gateway ARP protection to prevent MAC address spoofing

Structure

Provides AC24V/DC12V power supply and supports PoE
Cast aluminum body, efficient heat dissipation
IP67, IK10

Camera
Sensor	1/2.8“, 2MP CMOS
Focal length	2.8-12mm, motorized zoom
Shutter	Auto/Manual, range: 1/25-1/100000 s
Minimum illumination	0.001lux (F1.6)
Max resolution	1920 x 1080@60fps
Video compression	H.265, H.264, JPEG
Region of Interest (ROI)	Support
Video OSD	Supports 8 overlay areas and allows contents including date, time, date+time, custom contents
Photo OSD	Allows contents including time, license plate number, device ID, camera ID, vehicle body color, whitelist, image authentication ID, custom content (3 items), location
Smart
Application	Road, entrance & exit (default)
Vehicle detection mode	Trigger by video (default) or coil
Intelligent recognition	License plate number, number of characters on plate, vehicle body color (daytime)
List configuration	Supports whitelist and blacklist configuration, allows import, export, add, and delete operations
Let through policy	Trigger gate opening by recognized vehicles Trigger gate opening by all vehicles Trigger gate opening by whitelist Trigger gate opening by non-blacklist Configurable boolean output ID
Storage
Edge storage	Built-in 8GB eMMC, supports Automatic Network Replenishment (ANR)
Storage expansion	Supports Micro SD card expansion, up to 256GB.
Structure
Illuminator	Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control.
Sunshield	Long sunshield
Bracket	3-axis mounting bracket
Interface
Network interface	1×10M/100M RJ45 network interface
Serial port	1*RS485
Boolean output	1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
Boolean input	2 inputs, supports level/boolean, with max level up to DC 5V
Audio I/O	1/1
Storage interface	1*Micro SD card slot
General
Power supply	AC24 ± 20% / DC12V + 25% – 10%
	Power consumption: ≤20W
	Supports PoE(802.3at, class 4)
Dimensions (L×W×H)	338.8mm x 104.1mm x 98.4mm
Weight	1.65 kg
Operating environment	-40℃~60℃, ≤90% RH
Ingress protection	IP67, IK10
